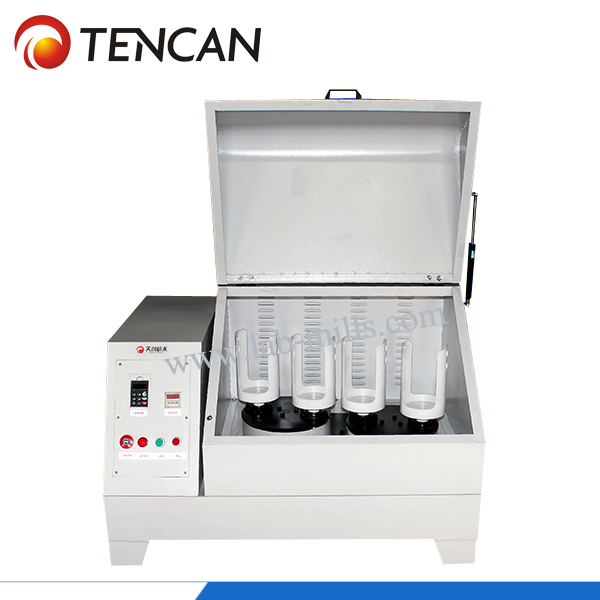

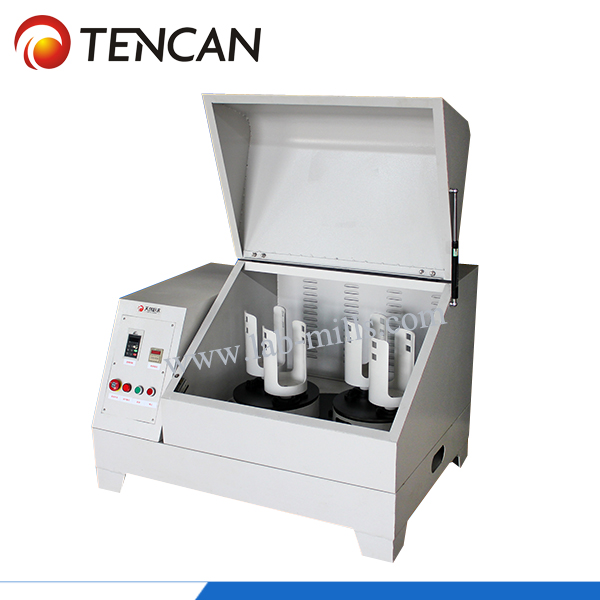

Dual Planetary Ball Mill
- Model No.:SXQM-0.4
- Brand:TENCA
- Applications:SXQM series of dual planetary ball mill is a kind of essential devise for labs, which want to mix, grind or produce high-tech new material in small lot. It is widely used in the following industries such as electronic, magnetism, medicine, ceramic, geology, mineral, metallurgy, build material, chemical, light industry, beauty, environmental protection, and etc.

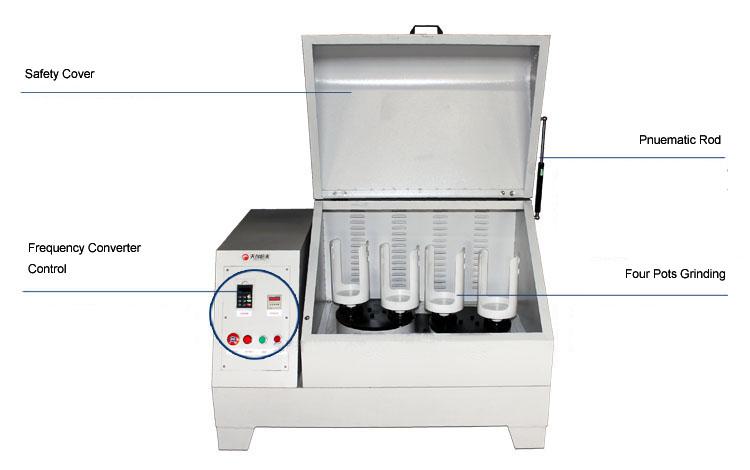

Overview
Overview
The machine can both move vertically and horizontally. It solves the problem of output materials sinking to the bottom and sticking to the mill jar.
The machine can both move vertically and horizontally. It solves the problem of output materials sinking to the bottom and sticking to the mill jar.
Working Principle
Working Principle
SXQM series planetary ball mill working principle: There are two larger planetary rollers that make rotation movement installed on a base turntable which makes revolution movement. Another two smaller turntables are installed on each larger tank rollers respectively; there are two mill tanks on each smaller turntable. The machine has totally four ball tanks installed on the smaller turntables. When the base turntable rotates, the tank roller makes planetary movements. The balls and samples of material inside the tanks are ground and mixed under high speed movement.
SXQM series planetary ball mill working principle: There are two larger planetary rollers that make rotation movement installed on a base turntable which makes revolution movement. Another two smaller turntables are installed on each larger tank rollers respectively; there are two mill tanks on each smaller turntable. The machine has totally four ball tanks installed on the smaller turntables. When the base turntable rotates, the tank roller makes planetary movements. The balls and samples of material inside the tanks are ground and mixed under high speed movement.
Advantages of Dual Planetary Ball Mill
It is the ideal facility to acquire samples for research institutes , universities as well as enterprise laboratories (can acquire four samples in one experiment). If mated with vacuum ball milling tanks, it can grind samples in vacuum status. The product is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.
It is the ideal facility to acquire samples for research institutes , universities as well as enterprise laboratories (can acquire four samples in one experiment). If mated with vacuum ball milling tanks, it can grind samples in vacuum status. The product is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.

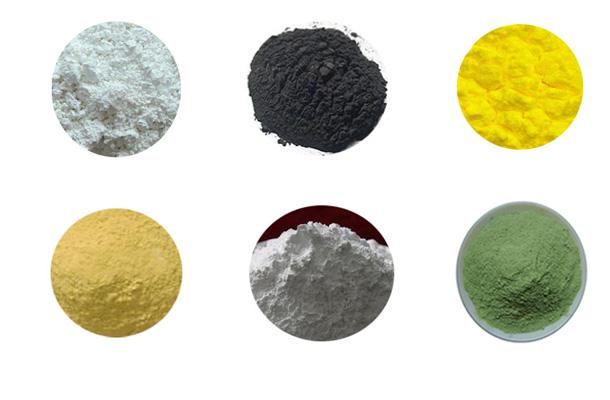

Feature
Features
Technical Features of Dual Planetary Ball Mill:
1. The mill pot makes two planetary movement, It enjoys high efficiency and small particle size under the high frequency percussion, linear collision force, friction force.( First in China)
2. Four different samples can be got at one time. It is convenient for the technologist to do the research and develop the new material.
3. Feed Granularity of Materials: Soil material ≤10mm, other materials ≤3mm.
4. Wet or dry grinding method. Minimum Granularity of powder amounts to 0.06 μm.
5. Frequency controlled, you can set the speed as per experiment effect.
6. Large turn disc revolution: 50-400rpm.
Small turn disc revolution: 100-800rpm.
Large planetary axis rotation: 100-800rpm.
Mill pot rotation: 200-1600rpm.
7. The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, time-setting operation.
8. Motor power: 0.4L, 2L, 4L: 0.75KW, 220V, 50Hz; 16L, 20L: 5.5KW, 380V, 50Hz.
9. Our planetary ball mill is functional which has low bary center, stable performance, compact structure, easy operation, reliable safety, low noise, and low wastage.
Technical Features of Dual Planetary Ball Mill:
1. The mill pot makes two planetary movement, It enjoys high efficiency and small particle size under the high frequency percussion, linear collision force, friction force.( First in China)
2. Four different samples can be got at one time. It is convenient for the technologist to do the research and develop the new material.
3. Feed Granularity of Materials: Soil material ≤10mm, other materials ≤3mm.
4. Wet or dry grinding method. Minimum Granularity of powder amounts to 0.06 μm.
5. Frequency controlled, you can set the speed as per experiment effect.
6. Large turn disc revolution: 50-400rpm.
Small turn disc revolution: 100-800rpm.
Large planetary axis rotation: 100-800rpm.
Mill pot rotation: 200-1600rpm.
7. The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, time-setting operation.
8. Motor power: 0.4L, 2L, 4L: 0.75KW, 220V, 50Hz; 16L, 20L: 5.5KW, 380V, 50Hz.
9. Our planetary ball mill is functional which has low bary center, stable performance, compact structure, easy operation, reliable safety, low noise, and low wastage.
Technical Parameter
Dual Planetary Ball Mill Technical Parameter
| Type | Dimension（mm） | Maximum Rotating Speed(rpm) | Power（KW） |
| SXQM-0.4 | 910*660*630 | 1340 | 1.5 |
| SXQM-1 | 910*660*630 | 1340 | 1.5 |
| SXQM-2 | 910*660*630 | 1340 | 1.5 |
| SXQM-4 | 910*660*630 | 1340 | 1.5 |
| SXQM-6 | 910*660*630 | 1340 | 1.5 |
| Feeding Size: Soil material≤10mm, other materials≤3mm | |||
| Output Granularity: Minimum 0.1 μm | |||
| Optional Models of Speed Control: Frequency converter and automatic timing control | |||
| Materials of Jar: Stainless steel, agate, nylon, corundum, zirconia, etc. | |||
Accessory

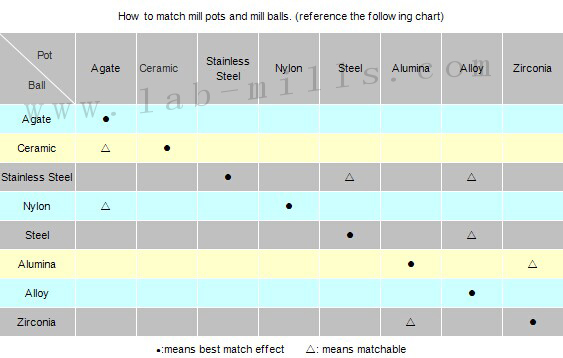

Planetary Ball Mill Accessories - Mill Pots and Mill Balls
Besides the planetary ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot, tempered nylon pot etc. Further, we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.

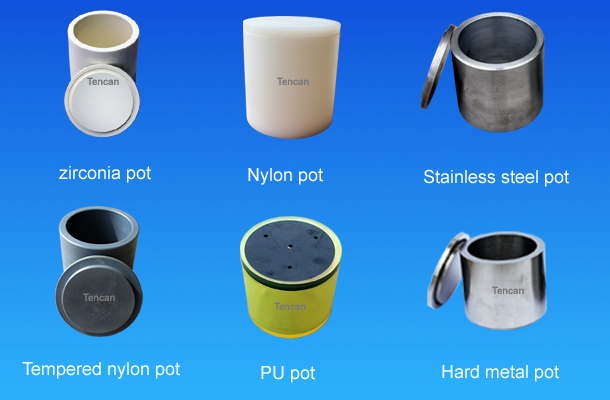

Mill pots
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
Besides the planetary ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot, tempered nylon pot etc. Further, we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
Mill pots
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

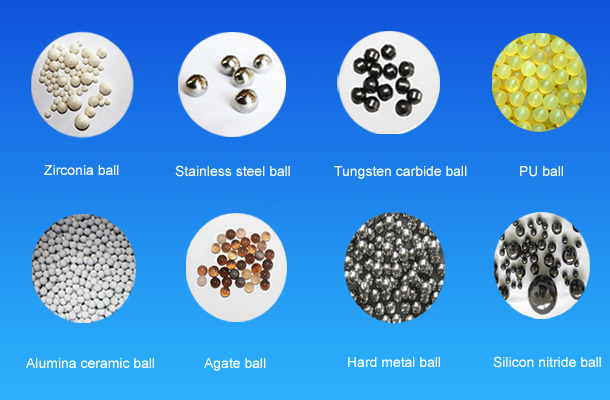

Mill balls
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
