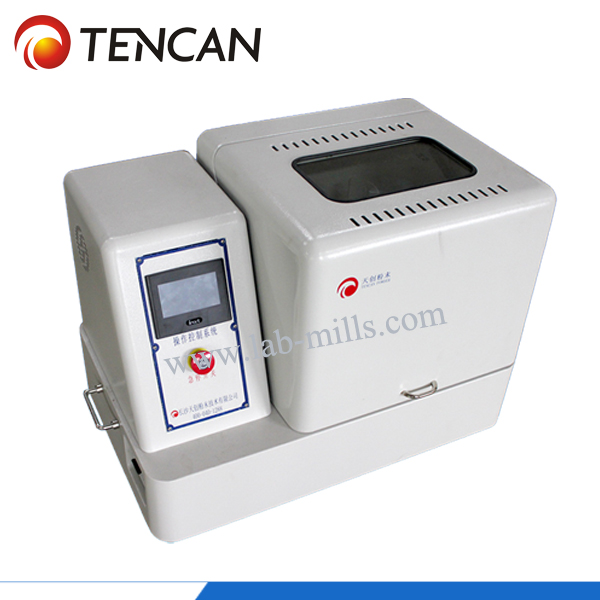

Micro-computerized Touch Screen Ball Mill
- Model No. :XQM-1(T)
- Brand:TENCAN
- Applications:Microcomputer touch screen device is applied to vertical, horizontal, 360 degree and dual planetary ball mill.
Overview
Overview
Details Show
Microcomputer touch screen planetary ball mill is configured with touch screen control system based on conventional planetary ball mill, which owns functions of password settings, freely programming, multi-group program storage and call, process monitoring and fault alarm as well as features of presetting start time and working time, low energy consumption, and pre-setting of grinding process with memory function to facilitate the next operation. It achieves a friendly man-machine interface due to its intuitive design and simple humanization operation. Microcomputer touch screen device is applied to vertical, horizontal, 360 degree and dual planetary ball mill.
Details Show
Microcomputer touch screen planetary ball mill is configured with touch screen control system based on conventional planetary ball mill, which owns functions of password settings, freely programming, multi-group program storage and call, process monitoring and fault alarm as well as features of presetting start time and working time, low energy consumption, and pre-setting of grinding process with memory function to facilitate the next operation. It achieves a friendly man-machine interface due to its intuitive design and simple humanization operation. Microcomputer touch screen device is applied to vertical, horizontal, 360 degree and dual planetary ball mill.
Working Principle
Working Principle
XQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground products can be as small as 0.1 mm.
Feature
Features
1.powerful and quick grinding down to nano range
2.comfortable parameter setting via display and ergonomic 1-button operation
3.automatic grinding chamber ventilation
1.powerful and quick grinding down to nano range
2.comfortable parameter setting via display and ergonomic 1-button operation
3.automatic grinding chamber ventilation
Technical Parameter
Technical Parameter
| Parameter 1 | ||||
| Model | Volume of Jar(L) | Dimension（mm） | Maximum Rotating Speed(rpm) | Power (KW) |
| XQM-1(T) | 1 | 730*430*580 | 670 | 0.75 |
| XQM-2(T) | 2 | 730*430*580 | 670 | 0.75 |
| XQM-4(T) | 4 | 800*470*560 | 670 | 0.75 |
| XQM-8(T) | 8 | 880*600*640 | 580 | 1.5 |
| XQM-12(T) | 12 | 880*600*640 | 580 | 1.5 |
| XQM-16(T) | 16 | 950*600*680 | 510 | 3 |
| XQM-20(T) | 20 | 1200*760*750 | 430 | 4 |
| XQM-40(T) | 40 | 1300*870*830 | 390 | 5.5 |
| XQM-60(T) | 60 | 1500*950*1000 | 360 | 7.5 |
| XQM-100(T) | 100 | 1750*1100*1350 | 240 | 11 |
| Max. Continuous Operating Time: 72 hours | ||||
| Parameter 2 | ||||
| Model | Volume of Jar(L) | Dimension（mm） | Maximum Rotating Speed(rpm) | Power (KW) |
| QXQM-1(T) | 1 | 1100*750*825 | 670 | 0.75 |
| QXQM-2(T) | 2 | 1100*750*825 | 670 | 0.75 |
| QXQM-4(T) | 4 | 1100*750*825 | 670 | 0.75 |
| QXQM-6(T) | 6 | 1100*750*825 | 670 | 0.75 |
| QXQM-8(T) | 8 | 1220*900*960 | 580 | 1.5 |
| QXQM-10(T) | 10 | 1220*900*960 | 580 | 1.5 |
| QXQM-12(T) | 12 | 1220*900*960 | 580 | 1.5 |
| QXQM-16(T) | 16 | 1530*1070*1220 | 510 | 3 |
| Max. Continuous Operating Time: 48 hours | ||||
| Parameter 3 | ||||
| Model | Volume of Jar(L) | Dimension（mm） | Maximum Rotating Speed(rpm) | Power (KW) |
| WXQM-1(T) | 1 | 560*470*730 | 670 | 0.75 |
| WXQM-2(T) | 2 | 560*470*730 | 670 | 0.75 |
| WXQM-4(T) | 4 | 560*470*730 | 670 | 0.75 |
| WXQM-6(T) | 6 | 1050*730*810 | 670 | 0.75 |
| WXQM-8(T) | 8 | 1050*570*700 | 580 | 1.5 |
| WXQM-10(T) | 10 | 1050*570*700 | 580 | 1.5 |
| WXQM-12(T) | 12 | 1050*570*700 | 580 | 1.5 |
| WXQM-16(T) | 16 | 1260*640*780 | 480 | 3 |
| WXQM-20(T) | 20 | 1500*700*850 | 430 | 4 |
| WXQM-40(T) | 40 | 1500*770*900 | 430 | 5.5 |
| WXQM-60(T) | 60 | 1530*900*1020 | 420 | 7.5 |
| WXQM-80(T) | 80 | 1750*990*1130 | 420 | 11 |
| Max. Continuous Operating Time: 72 hours | ||||
| Parameter 4 | ||||
| Model | Volume of Jar(L) | Dimension（mm） | Maximum Rotating Speed(rpm) | Power (KW) |
| SXQM-0.4(T) | 0.4 | 910*660*630 | 1340 | 0.75 |
| SXQM-1(T) | 1 | 910*660*630 | 1340 | 0.75 |
| SXQM-2(T) | 2 | 910*660*630 | 1340 | 0.75 |
| SXQM-4(T) | 4 | 910*660*630 | 1340 | 0.75 |
| SXQM-6(T) | 6 | 910*660*630 | 1340 | 0.75 |
| Max. Continuous Operating Time: 72 hours | ||||
| Parameter 5 | |
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Minimum 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Accessory
Accessory
Besides the planetary ball mill machine, our factory provides all kinds of mill pots, stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot, tempered nylon pot etc. Further, we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
Besides the planetary ball mill machine, our factory provides all kinds of mill pots, stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot, tempered nylon pot etc. Further, we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
Mill Pots
We provide all kinds of mill pots in any matched size, which are made from following materials :agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, polytef, PU, cemented carbide, crystal glass, and etc.
Mill Balls

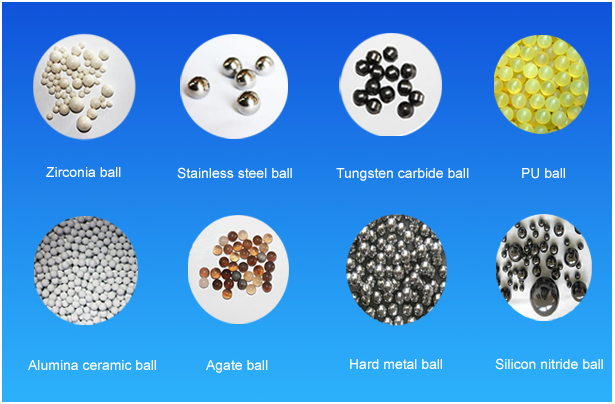

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, polytef, cemented carbide, crystal glass and other special metal materials.
