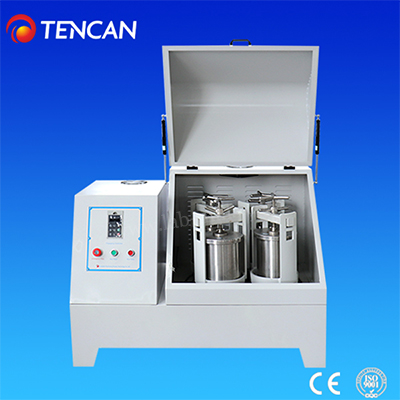

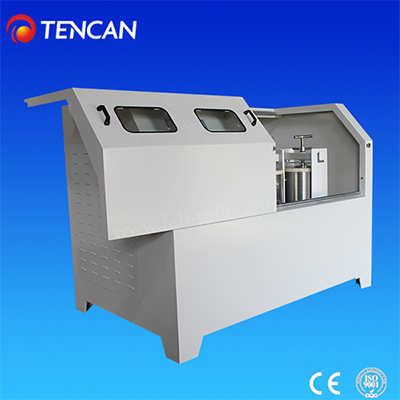

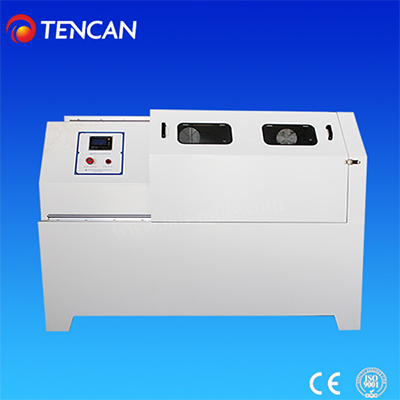

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

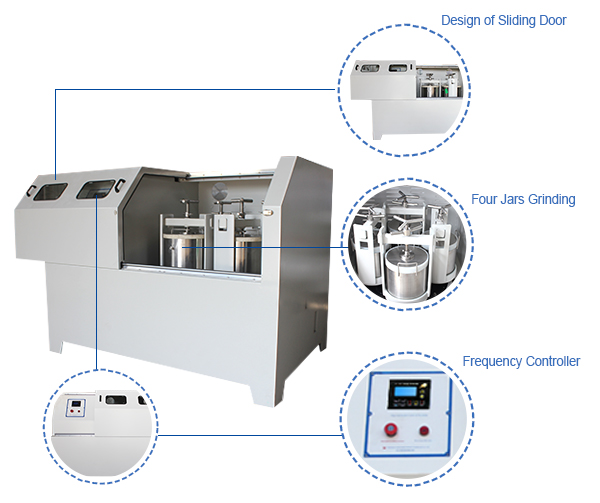

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Drive Mode	Gear drive
Operation Mode	Two or four grinding tanks working together
Max Load Capacity	Less than 2/3 of total volume of grinding jars
Feed Size of Materials	Soft and Crispy material≤10mm,Other materials≤3mm
Output Granule	Minimum 0.1µm
Rotational Speed Ratio	1/2
Max.Continuous Operating Time	72 Hours
Materials of Jar	stainless steel.agate,nylon,corundum, zirconia,etc

Technical Parameter Table(I) of Vertical Square Planetary Ball Mill (Production Type)
Type NO	Specification	Volume of Each Matched Pot	Quantity	Remarks
XQM-20	20L	2-5L	4pcs	Matched with vacuum mill pots from 2L to 4L
XQM-40	40L	5-10L	4pcs	Can be Matched with 5L Vacuum mill Pot
XQM-60	60L	10-15L	4pcs	Can be Matched with 10L Vacuum mill Pot
XQM-100	100L	20-25L	4pcs	Can be Matched with 20L Vacuum mill Pot

Technical Parameter Table(II) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
XQM-20	4	380V-50Hz	25-215	50-430	1-9999	1-999	65db
XQM-40	5.5	380V-50Hz	20-195	40-390	1-9999	1-999	68db
XQM-60	7.5	380V-50Hz	27-174	40-260	1-9999	1-999	68db
XQM-100	11	380V-50Hz	27-160	40-240	1-9999	1-999	68db

Technical Parameter Table(III) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Dimension (mm)
XQM-20	4	Frequency Control	440	1200760920
XQM-40	5.5	Frequency Control	675	14008501030
XQM-60	7.5	Frequency Control	875	16009501120
XQM-100	11	Frequency Control	1100	175011001180

Please Check the Parameter of Mill Jar and Mill Ball

Material	Volume of Mill Jar	Diameter of Mill Ball (mm)
Stainless Steel	2L,2.5L,3L,4L,5L,10L,15L,20L,25L	1-30mm
Zirconia	2L,3L,4L,5L	1-30mm
Alumina	2L,3L,5L,10L	1-50mm
Tungsten Carbide	\	3-10mm
Agate	2L	6-35mm
Iron Core PU	\	15-30mm
Nylon	2L,2.5L,3L,4L,5L,10L,15L,20L,25L	\
PU	2L,2.5L,3L,4L,5L,10L,15L,20L,25L	\
PTFE	2L,2.5L,3L,4L,5L,10L	\

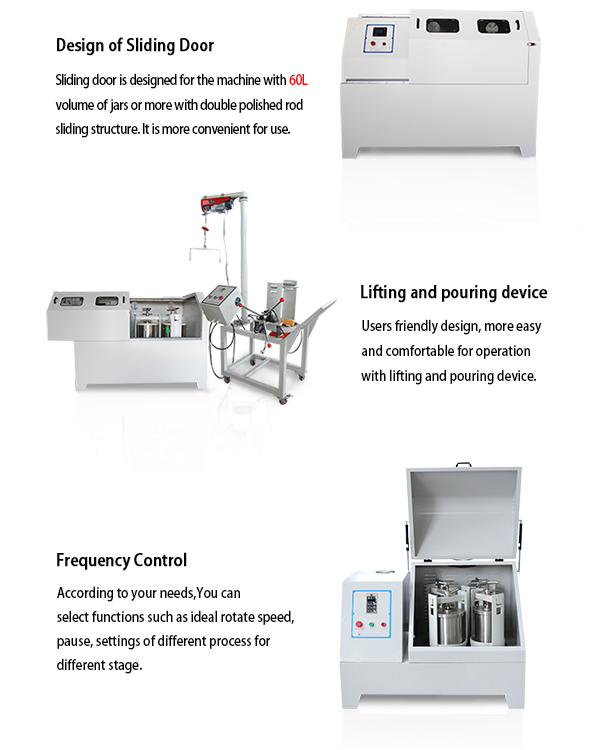

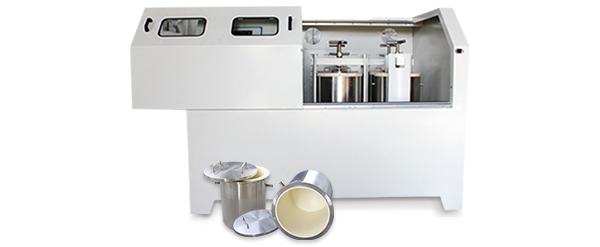

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
