Agate Mill Balls
- Brand:Tencan
Overview
Overview
Tencan Agate ball is made of natural agate with high hardness and high toughness as well as good abrasion resistance. It can be used and matched with all kinds of ball mills. Agate ball has a long life and reduces using cost and friction abrasion. Further, it has less effect to the environment.

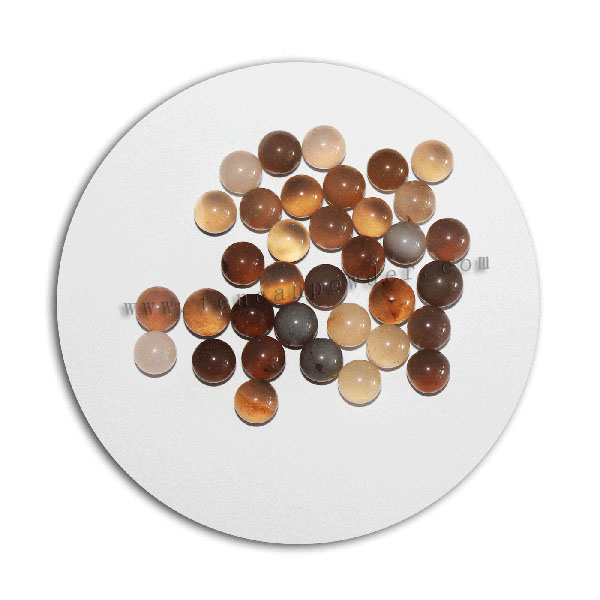

Product Show of Tencan Agate Ball
Tencan Agate ball is made of natural agate with high hardness and high toughness as well as good abrasion resistance. It can be used and matched with all kinds of ball mills. Agate ball has a long life and reduces using cost and friction abrasion. Further, it has less effect to the environment.
Product Show of Tencan Agate Ball
Feature
Features of Agate Ball
1) High density, high hardness, high grinding efficiency, and rapid grinding.
2) Smooth and polishing surface, small diameter: It is suitable for grinding and dispersing precise and ultra-fine powder.
3) Because of its high purity, it can prevent from being mixed into grinding powder.
4) Good abrasion resistance and durability: Production cost can be reduced.
5) It plays a great role in wet grinding and dispersing sticky and heavy materials.
6) No need to worry about erosion problem of balls when applied to stirred ball mills.
1) High density, high hardness, high grinding efficiency, and rapid grinding.
2) Smooth and polishing surface, small diameter: It is suitable for grinding and dispersing precise and ultra-fine powder.
3) Because of its high purity, it can prevent from being mixed into grinding powder.
4) Good abrasion resistance and durability: Production cost can be reduced.
5) It plays a great role in wet grinding and dispersing sticky and heavy materials.
6) No need to worry about erosion problem of balls when applied to stirred ball mills.
Technical Parameter
Parameters of Agate Ball

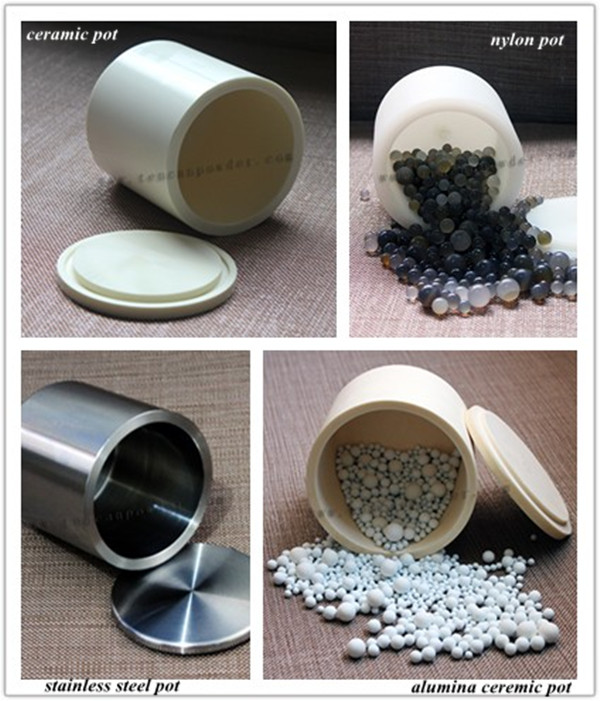

Matching Ways of Jars and Balls
| Components | 94%SiO2, 6%MgO/ CaO/ Mn2O3 |
| Moh's Hardness | 7.2 |
| Elasticity Modulus | ＞70 Gpa |
| Size(mm) | Φ3, 5, 8, 10, 12, 15, 20mm.(Customized size is acceptable.) |
Matching Ways of Jars and Balls
| Matching Ways of Jars and Balls | ||||||
| Agate Grinding Balls | Zirconia Grinding Balls | Tungsten Carbide Balls | Stainless Steel Balls | Alumina Balls |
Iron Core PU Ball |
|

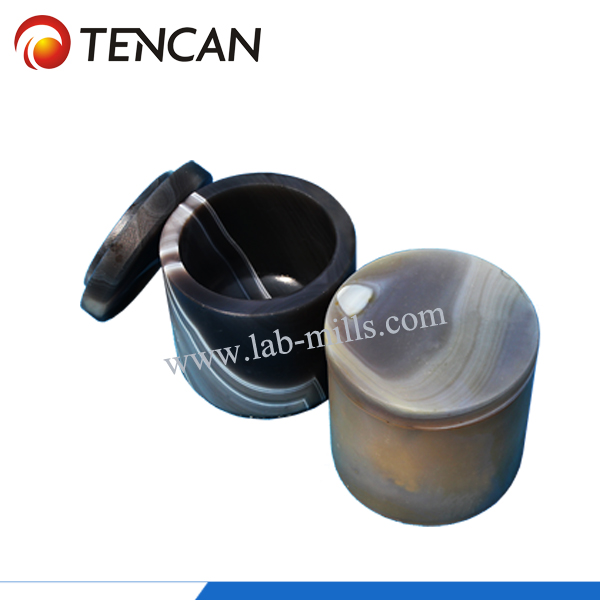

| Agate Mill Jar | ▲ | |||||
| Zirconia Mill Jar | ▲ | |||||
| Tungsten Carbide Mill Jar | ○ | ▲ | ||||
| PTFE Mill Jar | ▲ | ○ | ||||
| Stainless Steel Mill Jar | ▲ | |||||
| Nylon Mill Jar | ○ | ▲ | ||||
| Alumina Mill Jar | ○ | ▲ | ||||
| PU Mill Jar | ○ | ○ | ○ | ▲ | ||
| Remarks: ▲ - Best Mstch, ○- Optional Match. Best Match Ratio: Large-sized Balls:20%; Medium-sized Ball: 50%; Small-sized Ball:30%. |
||||||
