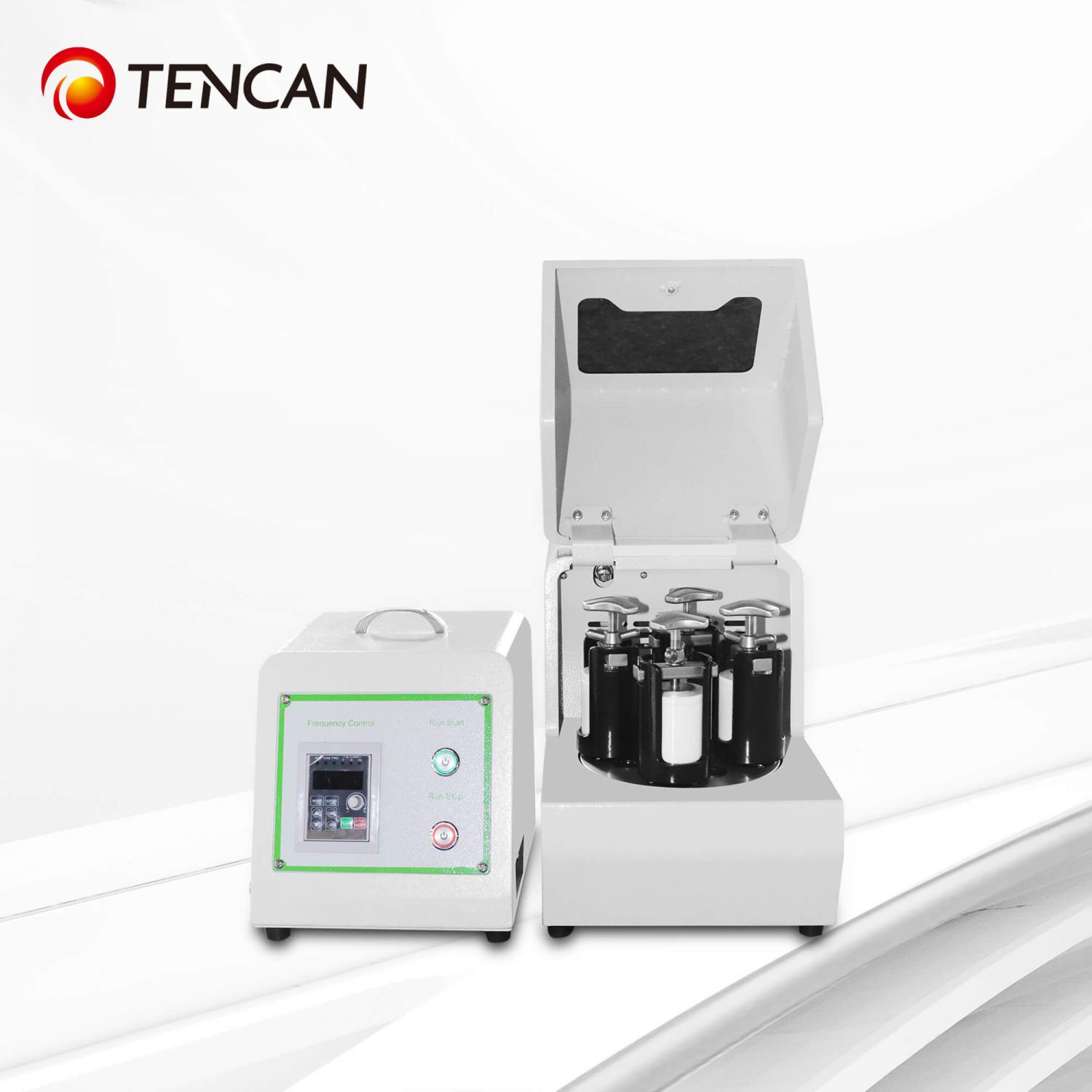

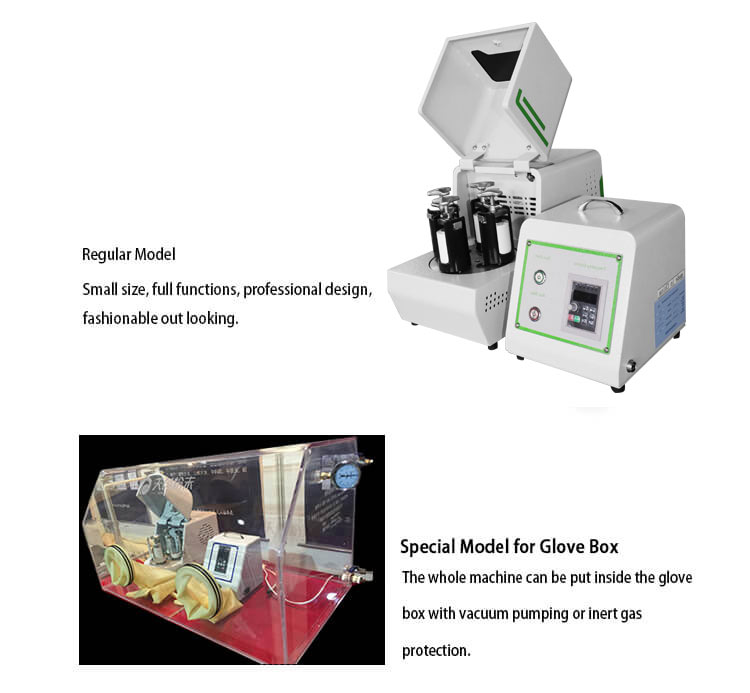

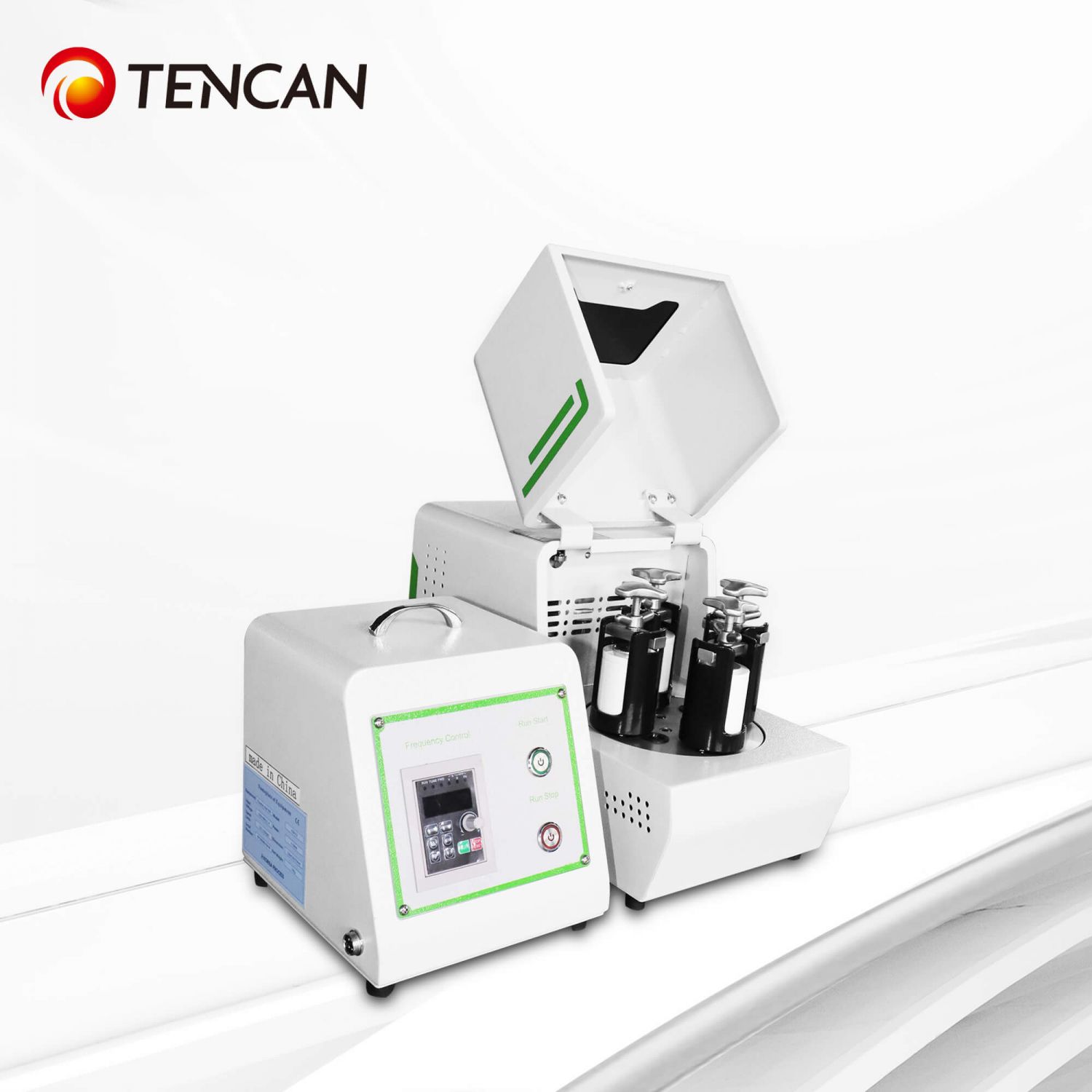

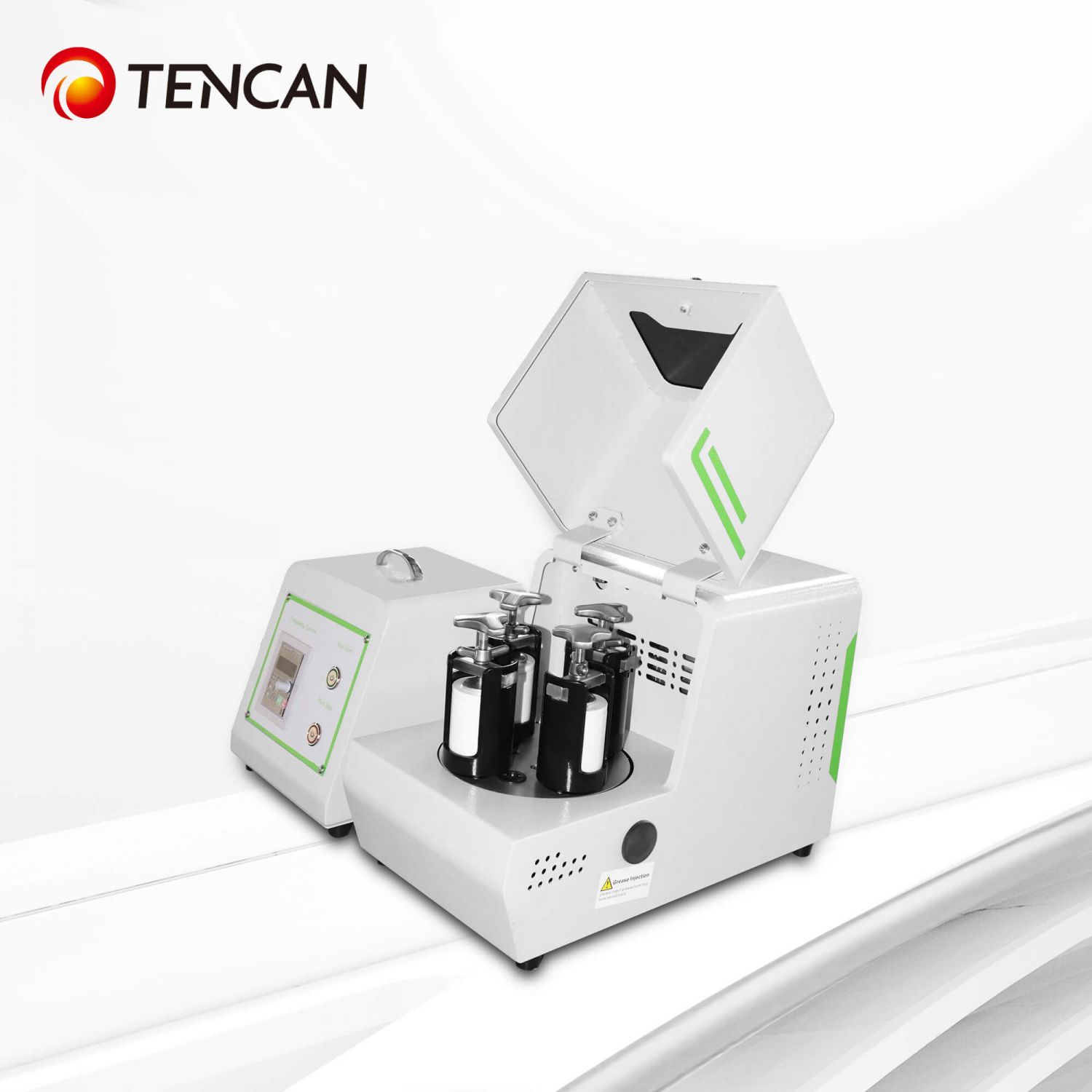

Vertical Planetary Ball Mill for Glove Box Use

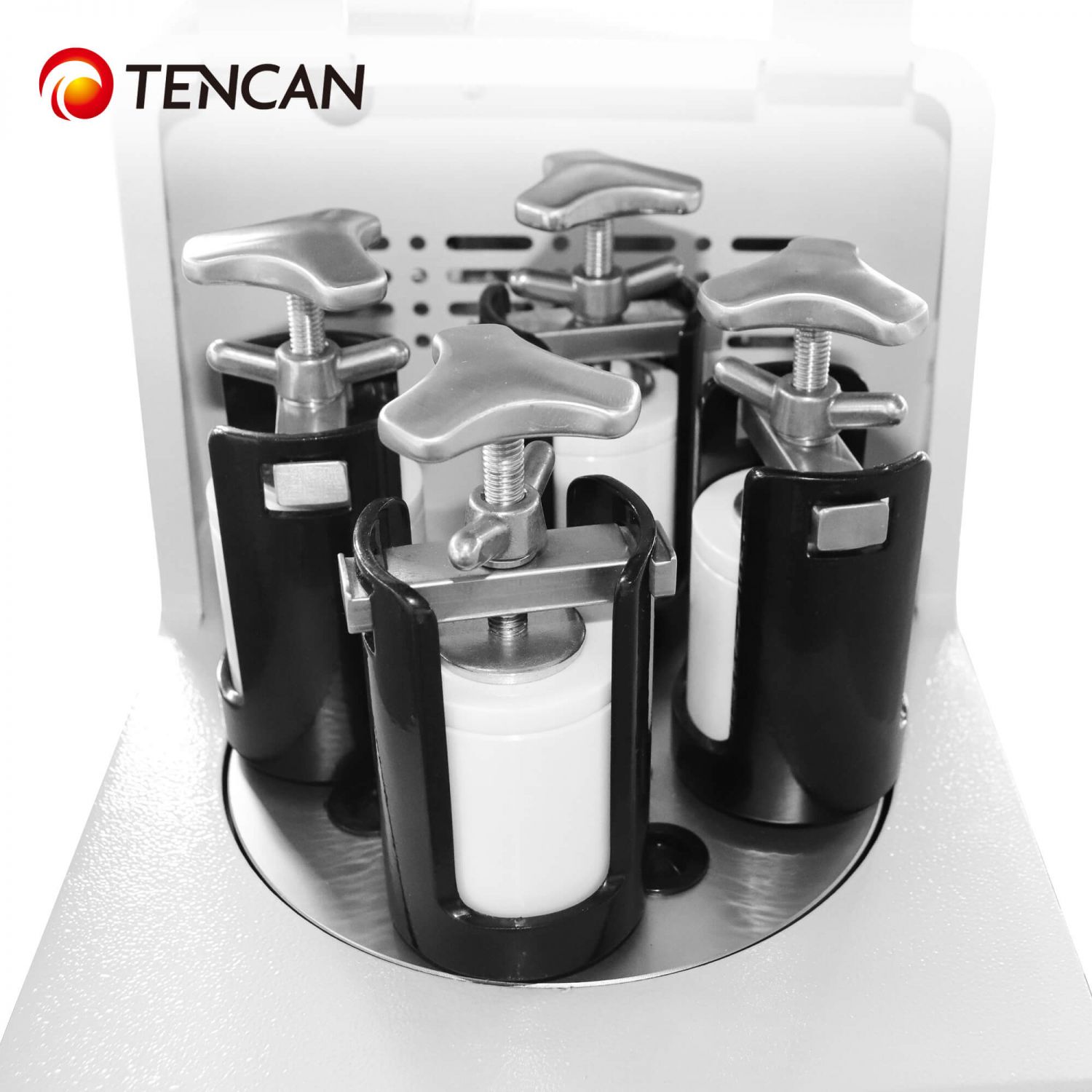

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1µm.

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.

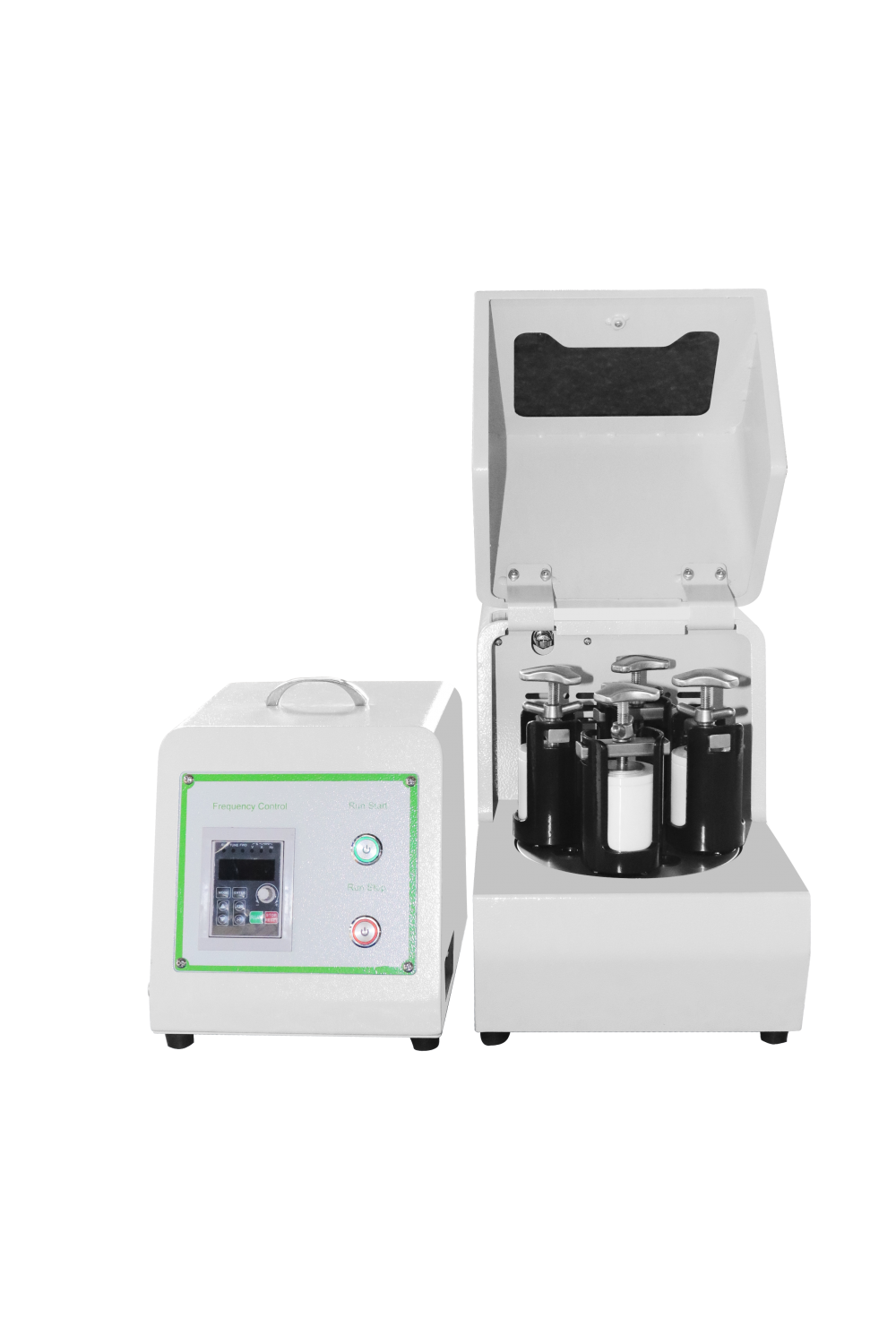

4. The machine is controlled by frequency converter, you may set ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of XQM-2S: small volume, more functions,low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

Drive Mode	Gear drive or belt drive
Operation Mode	Two or four grinding tanks working together
Max Load Capacity	Less than 2/3 of total volume of grinding jars
Feed Size of Materials	≤3mm
Output Granule	Minimum 0.1µm
Rotational Speed Ratio	1/2
Max.Continuous Operating Time	72 Hours

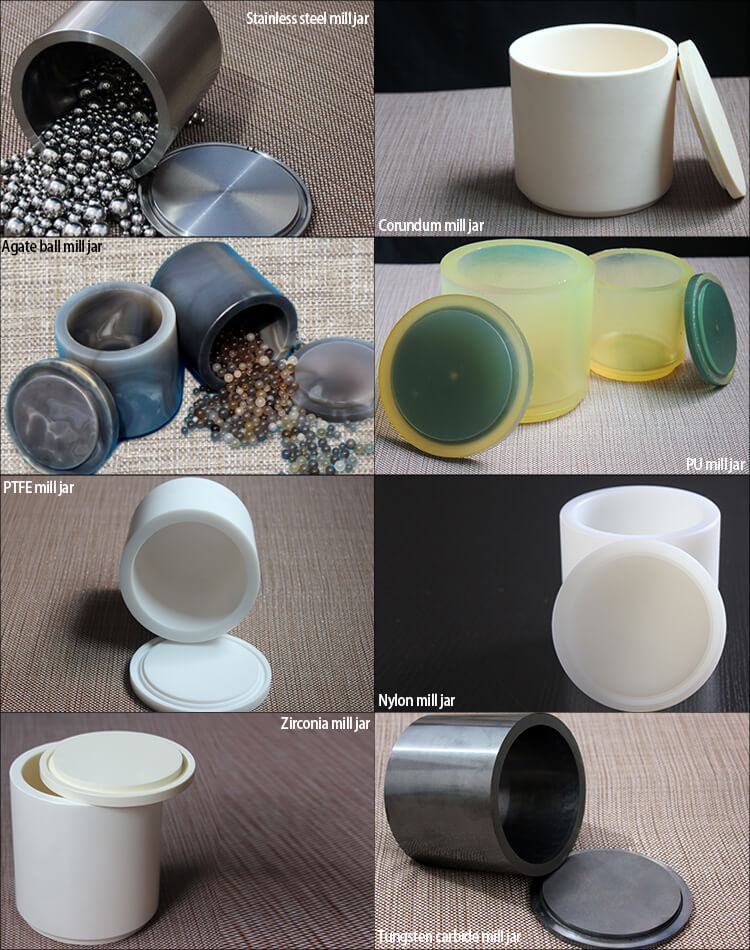

Materials of Jar	stainless steel.agate,nylon,corundum, zirconia,etc

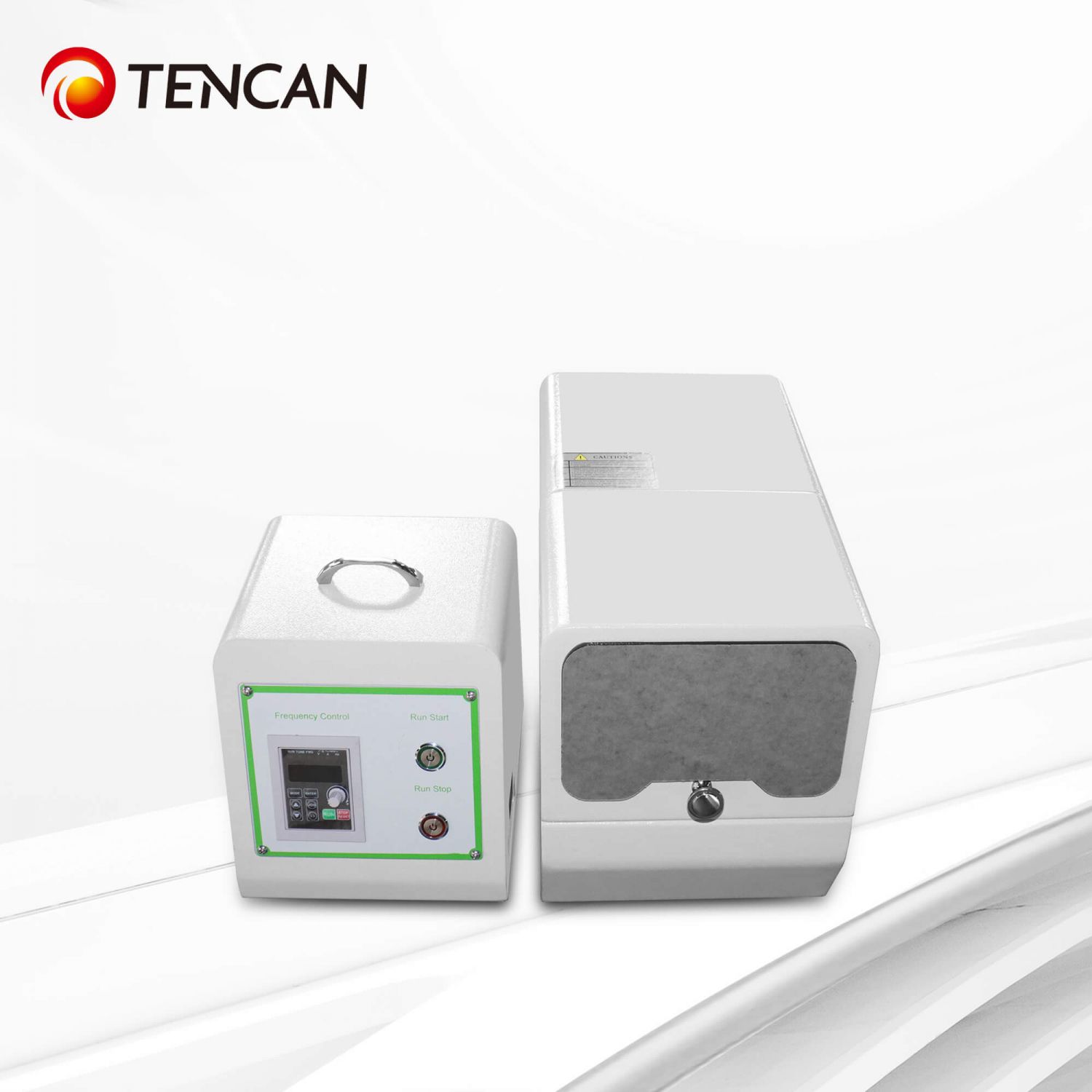

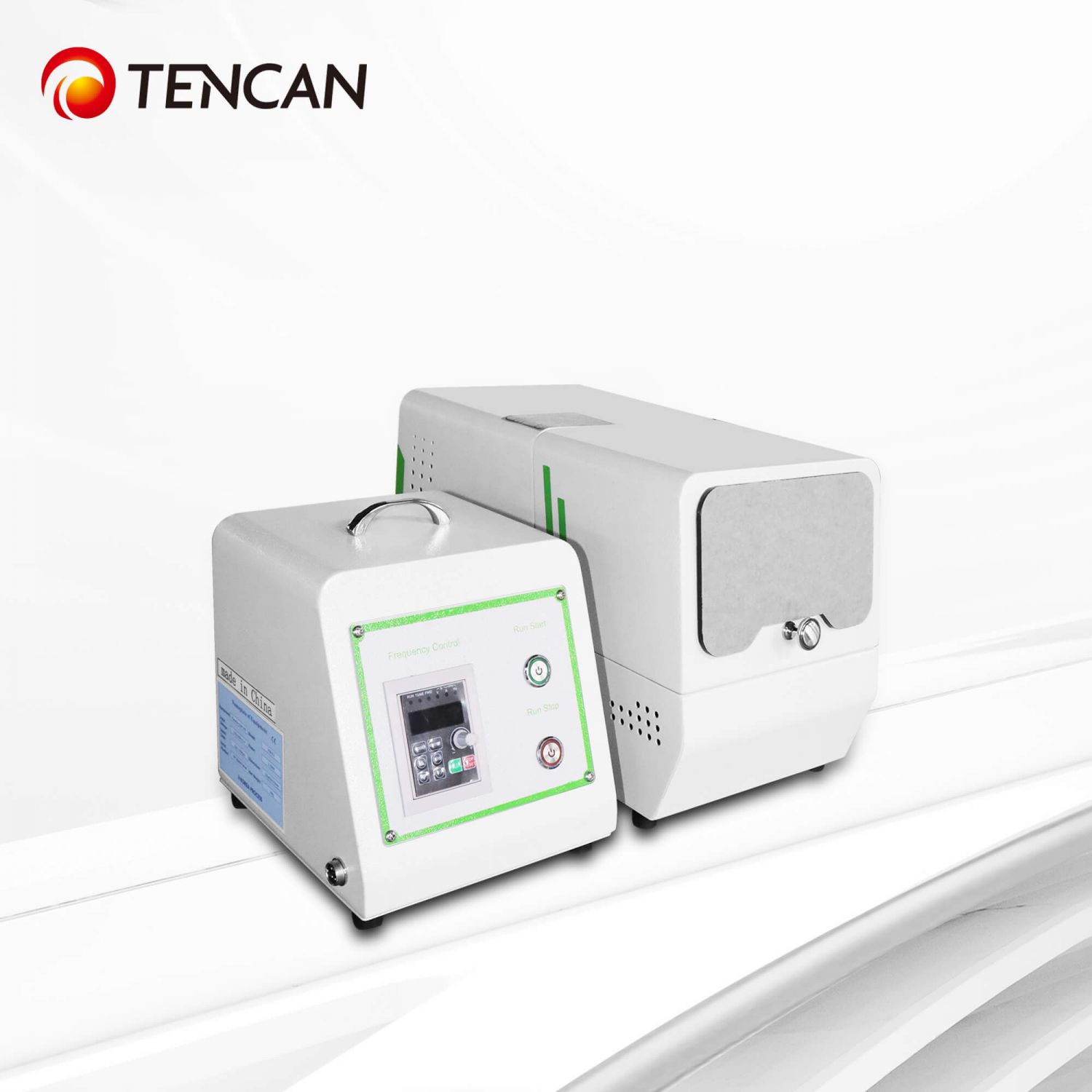

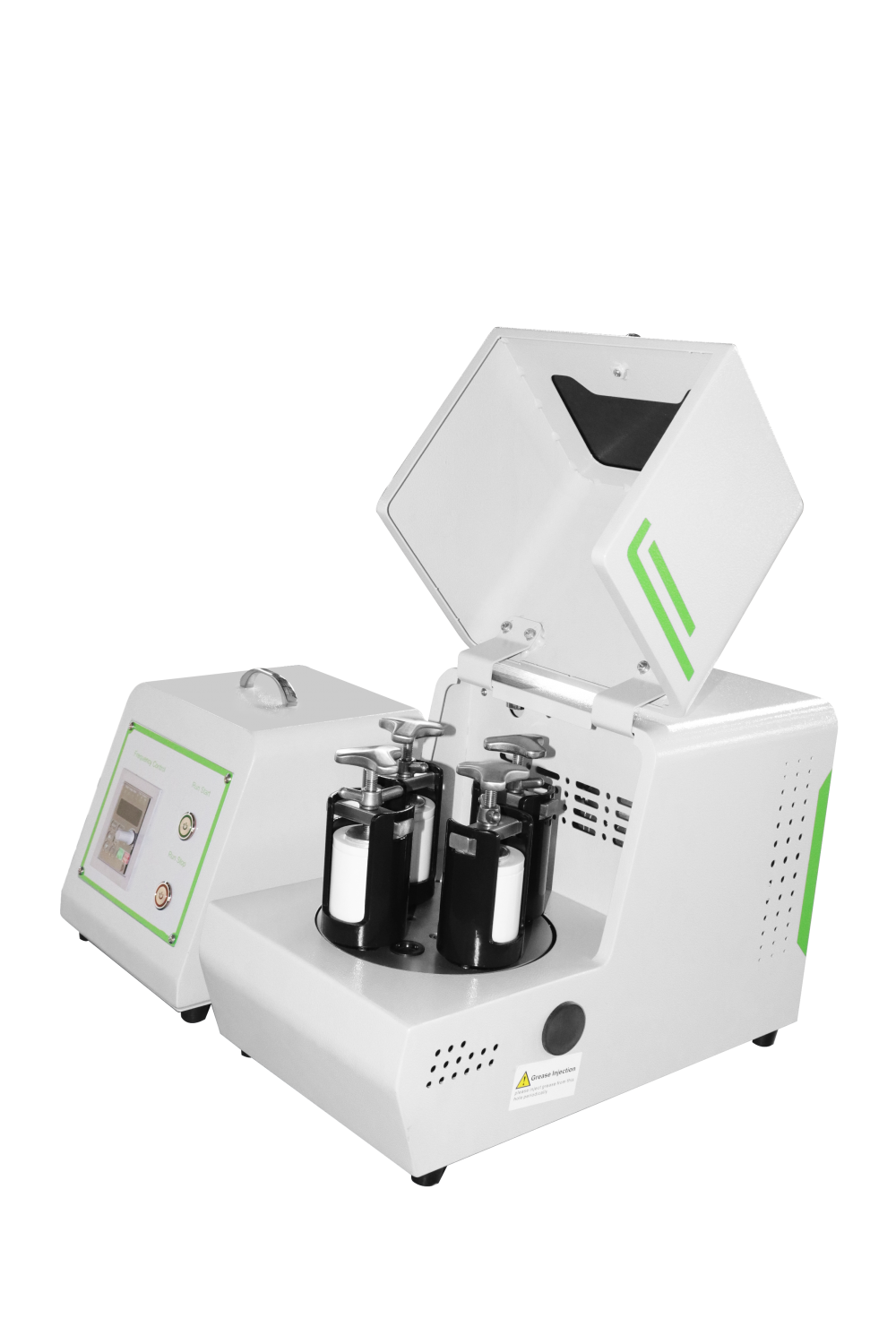

Super Mini Planetary Ball Mill For Glove Box Use
Model No.	Voltage	Power (W)	Revolution Speed (rpm)	Rotation Speed (rpm)	Inner Diameter of Jar Holder (mm)	Max Height  of Jar (mm)	Outline dimension (mm)	Net Weight (KGS)
XQM-0.2S	110V/50Hz、60Hz or 220V/50Hz for buyer option	90	60-580	120-1160	50	60	220*410*270	24
